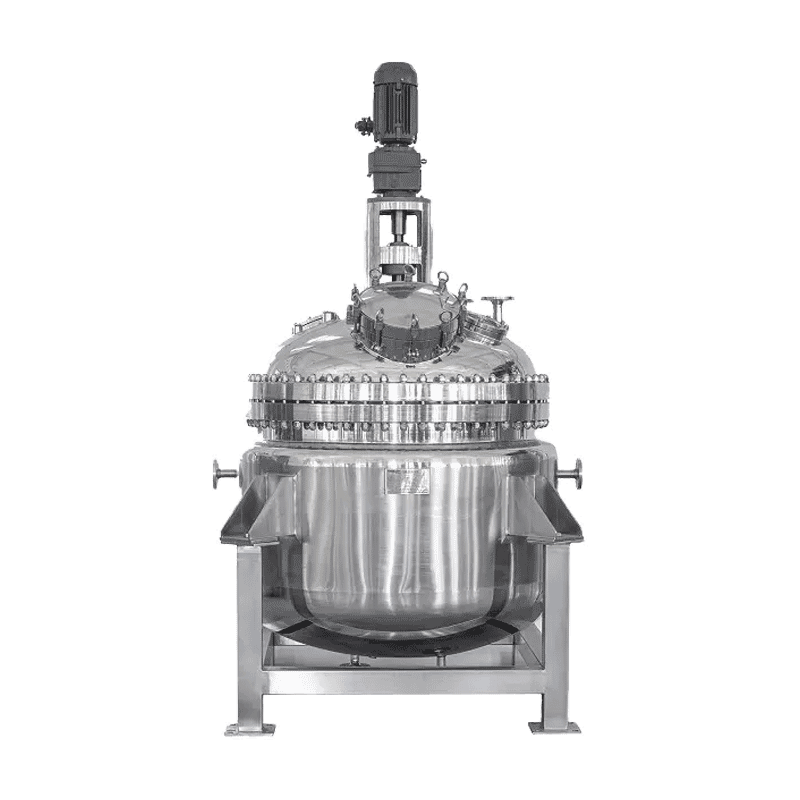

Stainless Steel Mixing Tank

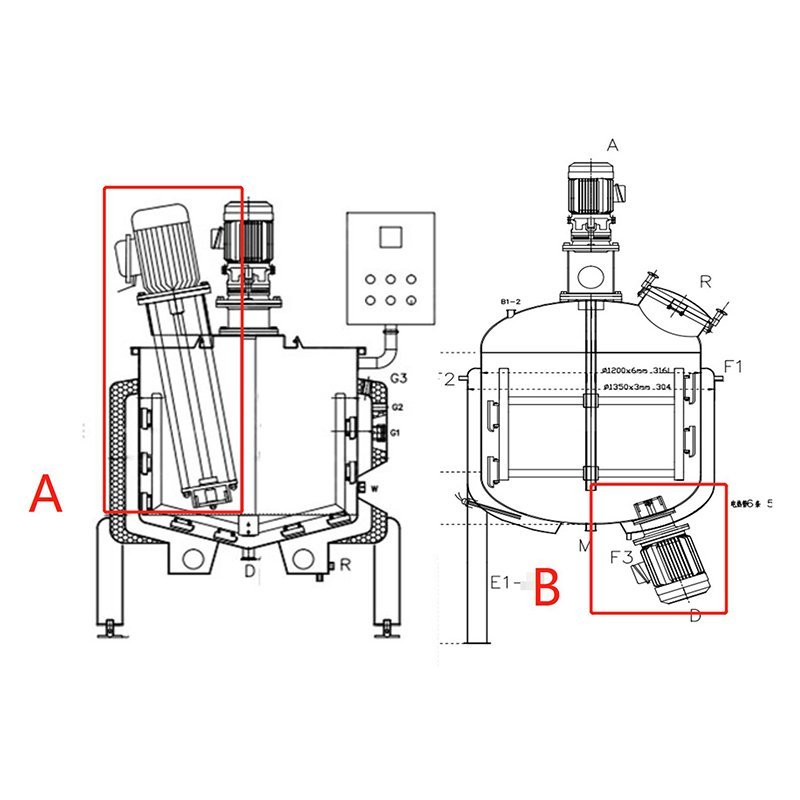

Top mixing and bottom mixing are available for different needs.

PHYTOEXTRACTION EQUIPMENT

Product Features

Application:
It is widely used in dairy industry, food industry, pharmacy, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling,insulation, sterilization treatment or storage of slurry must be stainless steel mixing tanks, especially for pasteurization of milk and
insulation, ice cream production line is the necessary equipment.
Material: SS304 / 316L;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: gas, steam, electricity;

Parameters:
Capacity Heating power (KW) Inner diameter(mm) Jacket diameter (mm) Speed(rpm) power(KW)
HD-50L 4*2 400 600 23-600/2800 0.75kw/2.2kw
HD-100L 6*2 500 700 23-600/2800 1.1kw/3.0kw
HD-300L 6*4 800 1000 23-600/2800 2.2kw/4.0kw
HD-500L 9*4 900 1100 23-600/2800 3.0kw/7.5kw
HD-1000L 12*4 1200 1400 23-600/2800 4.0kw/11kw
HD-2000L 15*5 1400 1600 23-600/2800 4.0kw/22kw
HD-3000L 15*6 1600 1800 23-600/2800 5.5kw/30kw

Stainless Steel Mixing Tank is designed, manufactured and inspected, in accordance with the pressure vessel standard (GB150-2011) and the steel welded atmospheric pressure vessel standard (NB/T47003.1-2009), strictly meeting GMP certificate requirements.

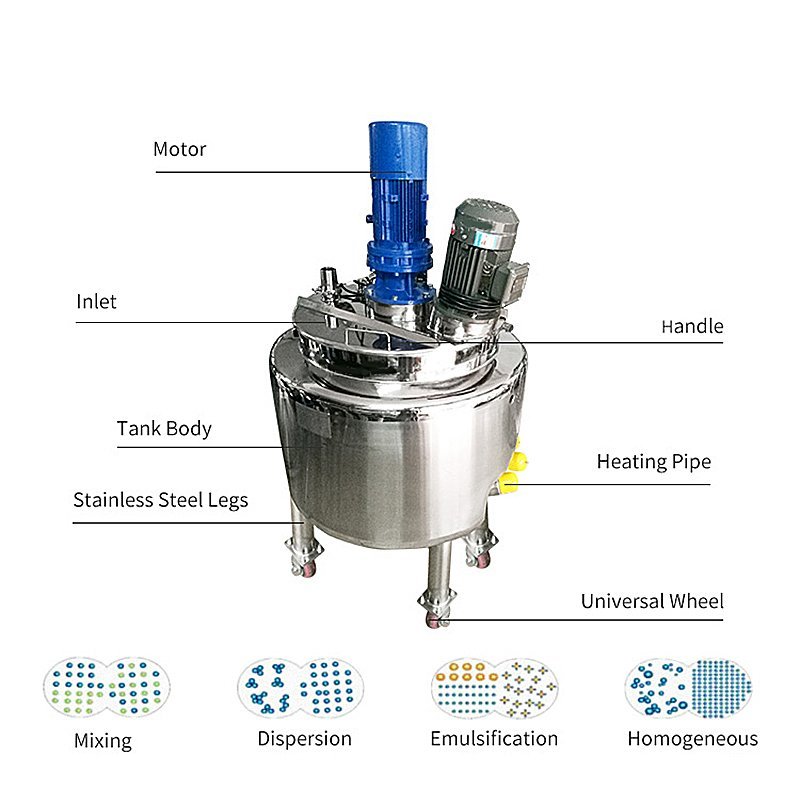

The mixing tank is a vertical tank in which the agitator mixes the material to meet the technical standard.

The mixing tank adopts vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank uses circular arc transition, without dead corner, easy to clean. Single layer, double layer (insulation tor tank and bottom head) or Jacket (tank and bottom head have jacket and insulation) is equipped with mechanical stirring according to customer’s requirement.

Feature

  • Volume, 100L~5000L and multiple specification, also can design and manufacture according to customers’ requirement. Materials S304 and/or S316.
  • The connection adopts Tri-clamp, and the tanks’ inner layer use 304 or 316L. The inner surface mirror polishing Rae;0.28 µ m-0.6 µ m Outer surface can be polished, wire drawn and sand blasted according to customers’ requirement
  • According to the requirements of production and processing, it can be designed with low healing, cooling, high-speed mixing system, sealing pressure system, vacuum system, measuring system and so on.

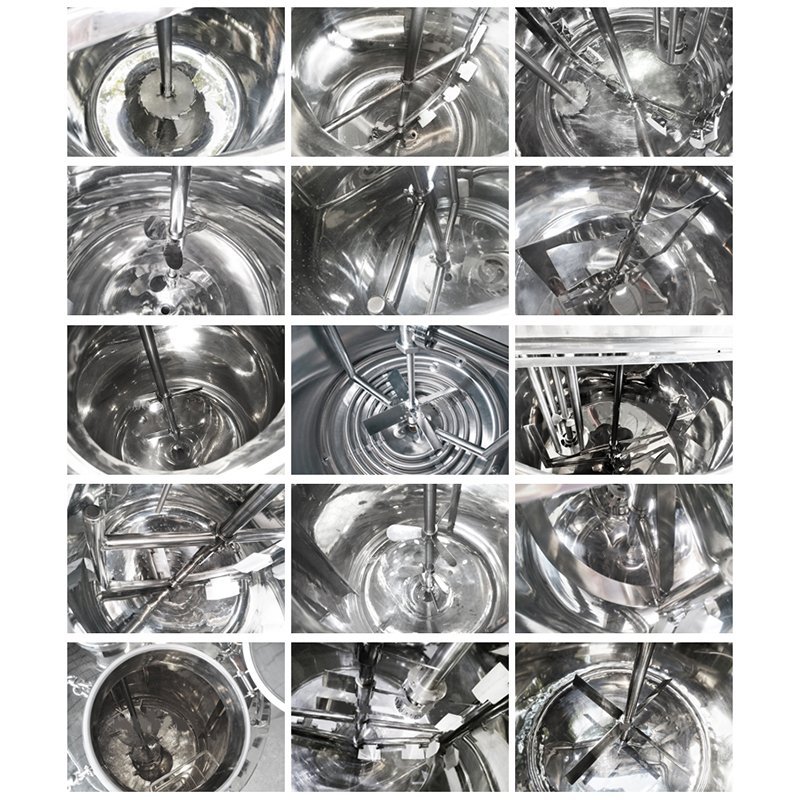

  • According to different mixing materials and requirements to the mixing effect, the structure of impeller can be the turbine type, paddle, anchor type, frame type, screw conveyor and so on.



Application

Stainless steel mixing tank can be used as storage tank, mixing tank, 316 reactor, temporary storage tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as medicine, food, fruit Juice beverage, dairy products, seasoning, brewing, beer, pharmaceutical, chemical and biological engineering.

certifications

PureyMech’s products are proudly certified by

Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616

designed and manufactured according to

Elementor Single Product #616
Elementor Single Product #616

Frequently Asked Questions

Edit Content

Sanitary grade of SUS304/SUS316L Stainless Steel Vendor: Shanghai Bao Steel Group Corporation or equivalent supplier.

In order to keep the raw materials organized and make sure proper material will be used, we insist asking the material vendor to provide original material test report. Also, we will do in-coming tests to ensure the material is qualified:

  • Metal spectrum analyzer
  • Thickness gauge
  • Roughness detector

All designing, manufacturing and inspection processes are performed according to GB150-1998. ISO9001 Quality Management System Standard will also be applied throughout the entire manufacture process.

Yes, with our certified workshop and excellent welding technics, we can provide you with high quality ASME or PED pressurized equipment.

As multiple tests and inspections are required, lead time of such equipment is longer than normal pressure equipment, it usually takes 18 to 20 weeks to finish.

Plasma welding machine imported from Germany will be used for tank longitude and girth welding and fillet welding to make sure the welding seam smooth and even.

Also, GTAW welding technology will be applied, inert gas concentration is 99.999%. Different welding wire ER316L or ER308 will be applied for different material of SS plate.

For particular circumstances, electric-arc welding will be applied. Welding material used for:

S304-S304: A102; S316L-S316L: A022; Different SS: A302.

Welding seam between jacket and vessel shall be NDT inspected according to JB4730-94 to ensure the impermeability and long service life.

For single tank, it takes around 3-5 weeks to deliver.

For integrated systems, it normally takes 18 to 20 weeks to deliver.

ASME/PED certified equipment will take 18 to 20 weeks

You are welcome to contact us for details if any needs.

Yes, customization order is acceptable.

You may send over the requirements, we will realize your design and provide you with the most cost-efficiency solutions.

Edit Content

For single tank, it takes around 3-5 weeks to deliver.

For integrated systems, it normally takes 18 to 20 weeks to deliver.

ASME/PED certified equipment will take 18 to 20 weeks.

You are welcome to contact us for details if any needs.

Plastic wrap film should be applied around the entire equipment.

Electrical parts should be disassembled and packed in crates if possible, otherwise it should be fully protected from water or any kind of potential damage in shipping.

Tank will be put down and sitting on a CS frame support, steel wire will be used for fasten tank to support. Rubber should be applied to where steel wire is touching the equipment.

When fixing the equipment in container, multiple fixing belts and/or steel wires should be used to make sure no movement of equipment.

should be used to make sure no movement of equipment

Yes, we will.

Equipment will be thoroughly washed before packing. Water used for washing should not have chloridion content more than 25mg/L to avoid damage of stainless-steel surface. Water stains must be cleaned once washing is finished.

Normally we will ship the equipment by sea due to the weight of it.

Air shipping is also an option, but it will cost more.

It depends on your choice.

Edit Content

Yes, we do. On-site installation service is available with charges.

Engineers and installation workers will be dispatched to your site to finish installation.

Service provided against charges, please contact us for more details.

Yes, we do.

Engineers will be dispatched to your site to conduct commissioning.

Training service is also available.

Service provided against charges, please contact us for more details.

Edit Content

One year of warranty provided.

Replacement will be provided freely if the failure is NOT artificial.

Shipping cost of free replacement will be born by us.

Yes, we do.

Wi-fi connections are installed in your system's control box, our engineers is able to debug the system online.

You can also contact our sales representatives for online support as well.
