Product Overview
This is a fully automatic Supercritical CO₂ Extraction System featuring two 10L extraction vessels and three 10L separation vessels. With a maximum working pressure of 50MPa and adjustable temperature (ambient to 85°C), it is ideal for solid feedstocks such as industrial hemp flowers, medicinal herbs, oilseeds, and botanical materials. Trusted by global CBD extraction facilities.
Key Points
- ✅ Dual 10L Extractors + Triple Separation – Operate in series or parallel; three 10L cyclone separators (total 30L) ensure complete recovery and prevent clogging.
- ✅ 50MPa High Pressure – Design pressure 52.5MPa, maximizing CO₂ density and solvation power for higher yields.
- ✅ PLC Full Automation – Siemens S7-200 PLC, 15” HMI touchscreen, and SCADA with data logging (≥32GB) and remote diagnostics.
- ✅ ±0.2MPa Precision Pressure Control – Proprietary auto control valves (not TESCOM) offer longer lifespan and better repeatability.
- ✅ Multi‑Layer Safety – Electrical contact gauge, relief valves, PLC overpressure shutdown, differential pressure protection (＞1MPa stops pump), and clamp interlock.
- ✅ Anti‑Clogging Design – Unique basket structure and pressure protection prevent damage even with high-oil or ultra‑fine powders.
- ✅ Phthalate‑Free Seals – All seals are phthalate‑free; test report available upon request.
- ✅ Clamp Quick‑Opening + Electric Lift – Easy operation with clamp‑type lid, motorized seal head lift, and electric hoist for baskets.
Applications
- 🌿 Industrial Hemp – CBD, CBG extraction with controlled THC residual.
- 💊 TCM & Pharmaceuticals – Tanshinone, artemisinin, curcumin, etc.
- 🥜 Edible Oils & Fats – Walnut oil, sea buckthorn oil, microbial oils – solvent‑free.
- 🔬 Cosmetic Ingredients – Essential oils, antioxidants, natural flavors.
- 🧪 R&D & Reference Standards – Small‑batch high‑purity compounds.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PMSCF230-50-20L |
| Extraction Vessels | 2 × 10L (clamp quick‑open, with baskets) |
| Separation Vessels | 3 × 10L (1st stage 28MPa, 2nd/3rd 18MPa) |
| Max. Working Pressure | 50MPa (extraction) |
| Design Pressure | 52.5MPa (extraction) |
| Temperature Range | Ambient ~ 85°C |
| CO₂ Pump Flow | 200 L/h (VFD controlled) |
| Co‑solvent Pump | 10 L/h (max. 10MPa) |
| Refrigeration | Water/air cooled, meets 9MPa condensation |
| Control System | Siemens PLC + 15” HMI + SCADA (≥32GB storage) |
| Pressure Accuracy | ±0.2MPa (automatic valves) |
| Materials of Contact | SUS304 stainless steel, GMP compliant |
| Footprint | 5.5m(L) × 4.4m(W) × 3.5m(H) (customizable) |
Intelligent Control System
- Two‑level access – Administrator (full rights) / Operator (production only) password protected.
- Real‑time monitoring – Pressure, temperature, and flow curves displayed and archived.
- Auto/Manual mode – Fully automatic sequences or manual override.
- Remote service – Authorized remote diagnostics by the manufacturer reduce downtime.
Safety Features
- Mechanical relief – Independent non‑adjustable safety valves on each vessel.
- Electrical contact gauge – Instantly stops the high‑pressure pump when preset limit is reached.
- PLC overpressure – User‑set safety pressure limit; alarm + pump stop on exceedance.
- Differential pressure protection – Stops pump if ΔP > 1MPa across extractor, preventing basket damage.
- Clamp interlock – Inlet valve cannot open unless the clamp is fully closed; red/green status on HMI.
Image Gallery

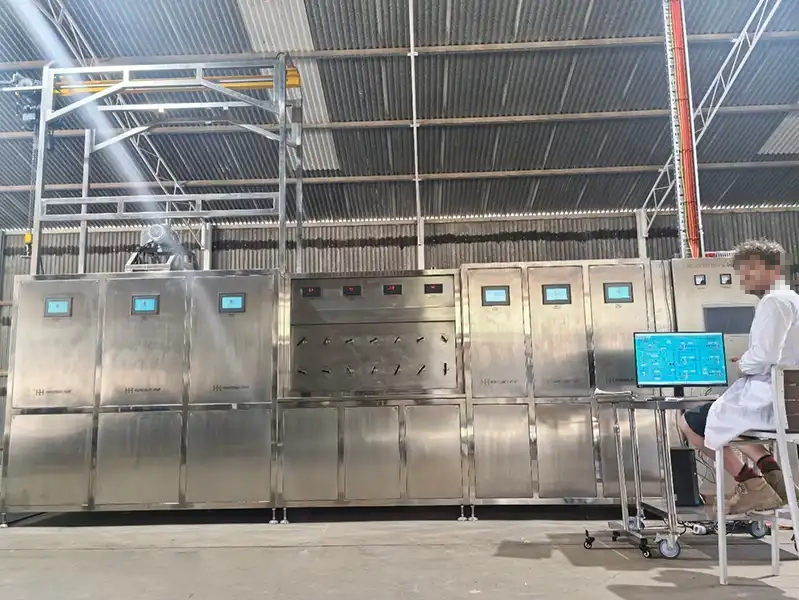

Supercritical CBD Extraction System waiting for FAT

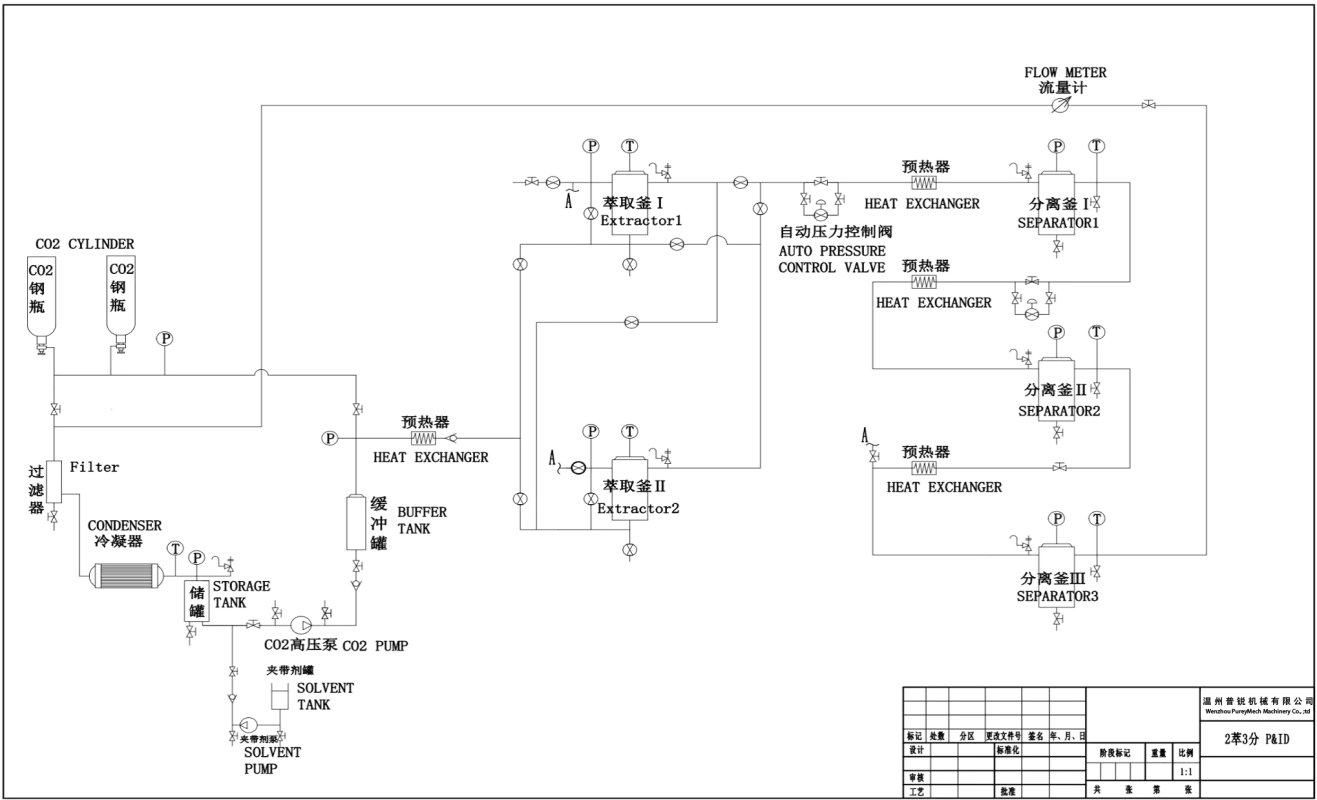

P&ID reference.
Installation at an Australian CBD extraction facility.
