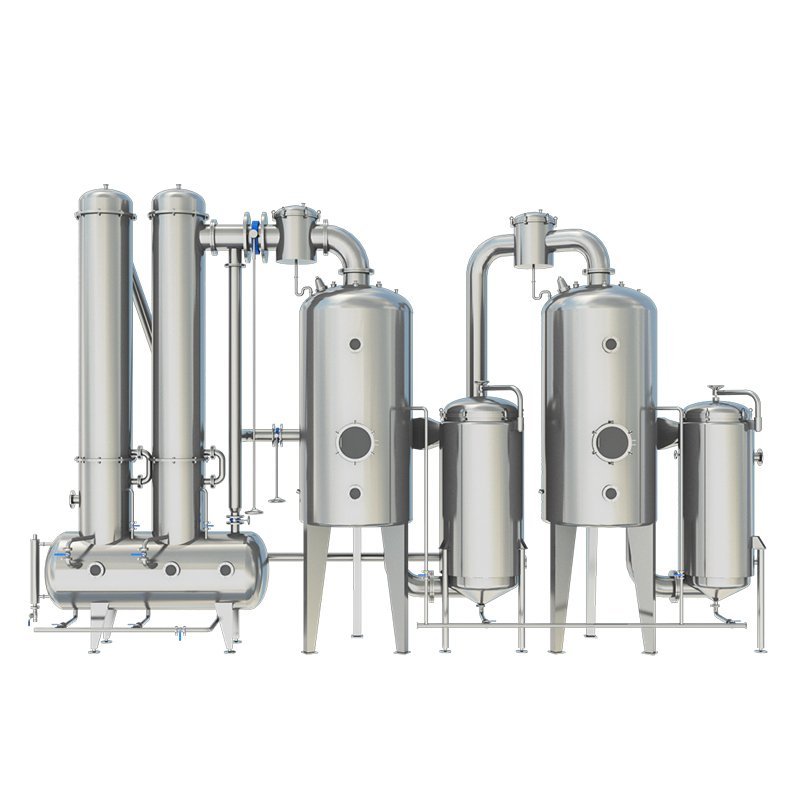

Two Stage Evaporator (RFE)

Designed based on One Stage Evaporator, the Two Stage Evaporator provides DOUBLED evaporation capacity while energy consumption is the same as one stage evaporator.

PHYTOEXTRACTION EQUIPMENT

Product Features

Application scope

Hot Selling Concentration Machine High Quality Evaporator is suitable for the concentration of biochemistry, pharmacy, milk, juice, camel milk, goats milk, sheep milk, horse milk, flavoring, food additives etc. It is especially suitable for heat sensitive products. With the function of continuous feeding and discharging, the fall film evaporator is stable and easy to operate. When the system starts to work, it only needs to adjust various parameters as required in the initial feeding stage and ensure continuous and stable supply of materials at the same time, then it can concentrate the product continuously, stalely, efficiently to reach qualified gravity requirements. The solvent can be recovered at the same time. We can design and produce it as one effect type, two effect type and three effect type according to the different requirements of different customers. The more effects, the more energy saving. The whole system of the fall film evaporator can be automatically controlled by PLC.

Principle &Characteristic
1. This machine is adopted outside heating circulation and vacuum condition, the inside material can be heat well and evaporated efficient fast.
2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.
3. This machine have the cooling unit, it can be got high concentration solvent. the solvent recovery ratio can reach to 95%.
4. This machine have the big sight glass to inspect inside material evaporate status.
5. Water/gas separater can reduce the material lost under the evaporate process.
6. This machine can be feed raw material, out put final products and take sample online continuous.
7. According to the process, we can use the PHE type cooling unit instead of the shell & tube condenser for the good cooling efficient.

Main Parameters

Model SJN II 500 SJN II 1000 SJN II 1500 SJN II 2000 SJN II 3000
Max Evaporating Capacity (kg/h) 500 1000 1500 2000 3000
Steam Cost (kg/h) ≤250 ≤500 ≤750 ≤1000 ≤1500
Water Cost (T/h) 6 12 15 18 25
Steam Pipe (mm) 40 50 50 65 80
Dimension (mm) L 4000 5000 6500 5500 6800
H 1500 1700 1800 2000 2000
W 3300 3500 4000 4200 4500
Evaporating Temp. (oC) First Effect 80-90
Second Effect 55-70
Designed Pressure (MPa) 0.09
Vacuum Degree (MPa) First Effect -0.04
Second Effect -0.06
Concentration Ratio 1.1~1.3

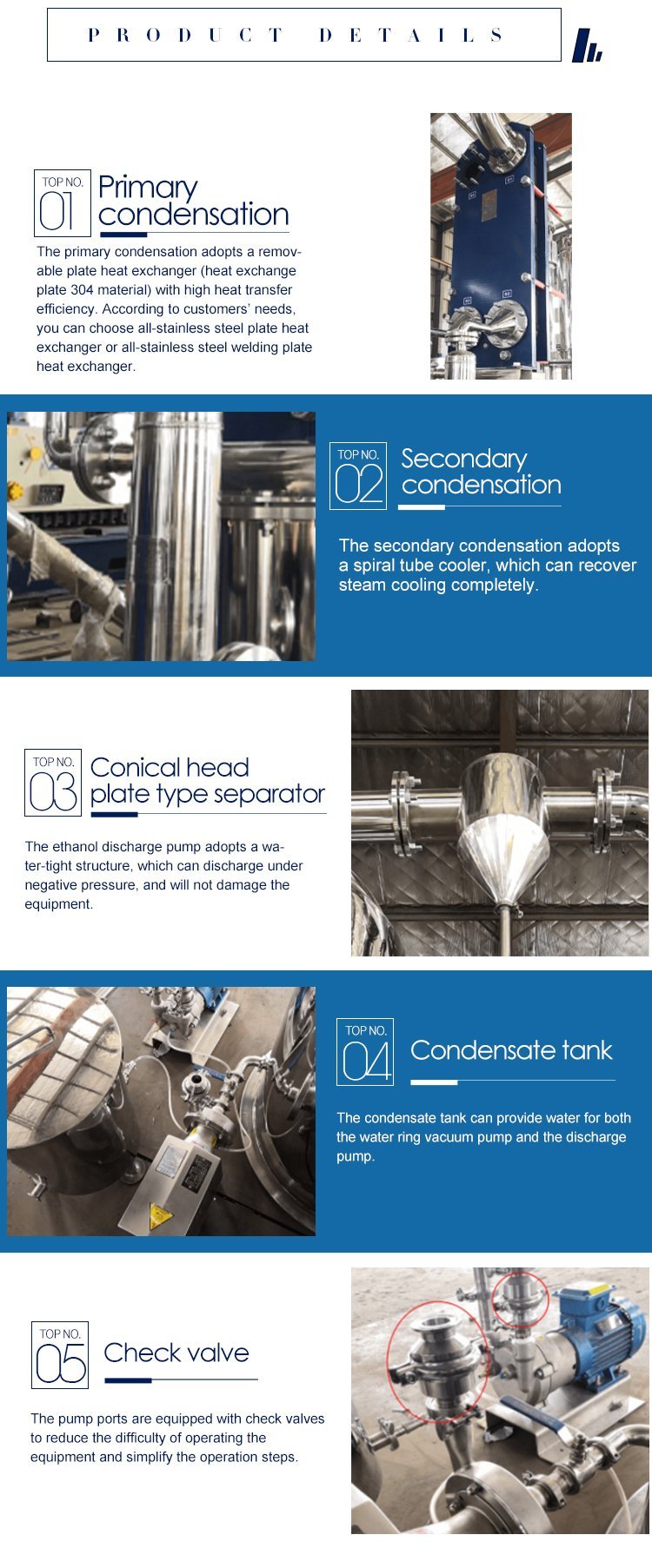

Product Details

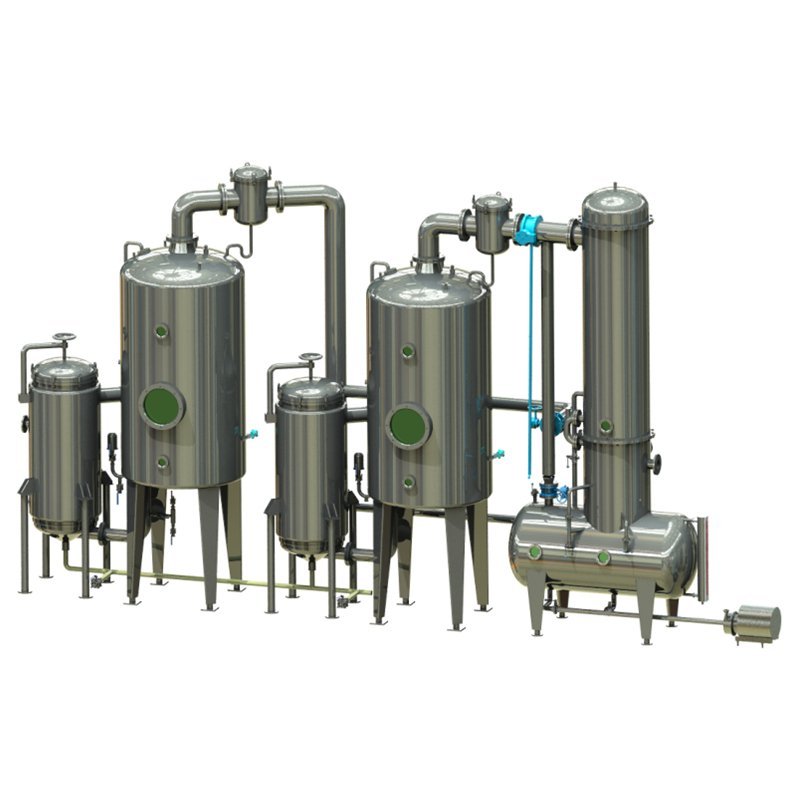

Two stage rising film evaporator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. This concentration machine is applicable to evaporation and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc, specially working as juice evaporator. The concentrating time is short and the evaporation speed is high, which can better protect the heat sensitive materials from being damaged.

The concentrator is applicable to concentration of medical herbs, Western medicine, glucose, starch, MSG, dairy and chemical industry etc. It is especially suitable for low temperature vacuum concentration of heat sensitive substances.

It can carry out continuous sterilization and concentration.  After carefully calculated and precisely designed and improved by professional designers of our company, it has more features and benefits than the original one. The period of being heated of materials is short and the evaporation temperature is low.  It has small influence on the products color, flavor and nutritious content, which is especially applicable to concentration of milk and other heat sensitive substances.



certifications

PureyMech’s products are proudly certified by

Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616
Elementor Single Product #616

designed and manufactured according to

Elementor Single Product #616
Elementor Single Product #616

Frequently Asked Questions

Edit Content

Sanitary grade of SUS304/SUS316L Stainless Steel Vendor: Shanghai Bao Steel Group Corporation or equivalent supplier.

In order to keep the raw materials organized and make sure proper material will be used, we insist asking the material vendor to provide original material test report. Also, we will do in-coming tests to ensure the material is qualified:

  • Metal spectrum analyzer
  • Thickness gauge
  • Roughness detector

All designing, manufacturing and inspection processes are performed according to GB150-1998. ISO9001 Quality Management System Standard will also be applied throughout the entire manufacture process.

Yes, with our certified workshop and excellent welding technics, we can provide you with high quality ASME or PED pressurized equipment.

As multiple tests and inspections are required, lead time of such equipment is longer than normal pressure equipment, it usually takes 18 to 20 weeks to finish.

Plasma welding machine imported from Germany will be used for tank longitude and girth welding and fillet welding to make sure the welding seam smooth and even.

Also, GTAW welding technology will be applied, inert gas concentration is 99.999%. Different welding wire ER316L or ER308 will be applied for different material of SS plate.

For particular circumstances, electric-arc welding will be applied. Welding material used for:

S304-S304: A102; S316L-S316L: A022; Different SS: A302.

Welding seam between jacket and vessel shall be NDT inspected according to JB4730-94 to ensure the impermeability and long service life.

For single tank, it takes around 3-5 weeks to deliver.

For integrated systems, it normally takes 18 to 20 weeks to deliver.

ASME/PED certified equipment will take 18 to 20 weeks

You are welcome to contact us for details if any needs.

Yes, customization order is acceptable.

You may send over the requirements, we will realize your design and provide you with the most cost-efficiency solutions.

Edit Content

For single tank, it takes around 3-5 weeks to deliver.

For integrated systems, it normally takes 18 to 20 weeks to deliver.

ASME/PED certified equipment will take 18 to 20 weeks.

You are welcome to contact us for details if any needs.

Plastic wrap film should be applied around the entire equipment.

Electrical parts should be disassembled and packed in crates if possible, otherwise it should be fully protected from water or any kind of potential damage in shipping.

Tank will be put down and sitting on a CS frame support, steel wire will be used for fasten tank to support. Rubber should be applied to where steel wire is touching the equipment.

When fixing the equipment in container, multiple fixing belts and/or steel wires should be used to make sure no movement of equipment.

should be used to make sure no movement of equipment

Yes, we will.

Equipment will be thoroughly washed before packing. Water used for washing should not have chloridion content more than 25mg/L to avoid damage of stainless-steel surface. Water stains must be cleaned once washing is finished.

Normally we will ship the equipment by sea due to the weight of it.

Air shipping is also an option, but it will cost more.

It depends on your choice.

Edit Content

Yes, we do. On-site installation service is available with charges.

Engineers and installation workers will be dispatched to your site to finish installation.

Service provided against charges, please contact us for more details.

Yes, we do.

Engineers will be dispatched to your site to conduct commissioning.

Training service is also available.

Service provided against charges, please contact us for more details.

Edit Content

One year of warranty provided.

Replacement will be provided freely if the failure is NOT artificial.

Shipping cost of free replacement will be born by us.

Yes, we do.

Wi-fi connections are installed in your system's control box, our engineers is able to debug the system online.

You can also contact our sales representatives for online support as well.
